1. Basic Product Information

Core Positioning: A floor-mounted (non-wall-mounted) support solution purpose-built for multi-size LCD video wall installations. Unlike wall-mount brackets, this LCD video wall floor stand is fully self-supporting and sits directly on the floor, making it the go-to choice for command centers, exhibition halls, and any venue where wall drilling is not possible or not desired.

2. Product Introduction

This LCD video wall floor stand features a thickened steel frame combined with a multi-hole adjustment structure, compatible with 46–55 inch LCD splicing screen panels in arbitrary row-column combinations (e.g., 2×2, 4×4, 5×3). As a floor standing LCD video wall mount, it combines high load-bearing capacity with splicing flexibility — no wall, no load-bearing structure, and no drilling required. Equipped with a precise leveling structure, it serves as the core support carrier for large LCD screen systems in security monitoring, commercial display, and emergency command scenarios.

3. Core Advantages

3.1 Modular Multi-Hole Design — LCD Video Wall Mounting Stand Adaptable to Multi-Size & Multi-Panel Splicing

• Adopts 10mm-pitch multi-hole beams (horizontal + vertical), compatible with 46–55 inch mainstream LCD splicing screen panels, supporting arbitrary row-column combinations;
• Seam accuracy ≤0.5mm, adapting to bezel tolerances of different brand LCD panels, ensuring no visual gaps across the LCD video wall.

3.2 Floor-Mounted, Drill-Free — A True LCD Video Wall Mobile Stand

• No wall load-bearing needed; the floor-standing design suits venues without load-bearing walls or temporary exhibition halls;
• Equipped with non-slip foot pads — installation requires no floor damage, and as a mobile LCD video wall stand it enables quick disassembly and relocation between sites.

3.3 Thickened Steel Frame — High Load-Bearing & Deformation-Resistant LCD Video Wall Floor Bracket

• Main body made of 2.0mm thick steel (square tube + angle steel combination), single-panel load-bearing ≥100kg, overall static load ≥1000kg;
• Double-layer horizontal reinforced beams + diagonal bracing structure, resistant to crowd collisions in public areas and slight equipment vibrations — no deformation during long-term use.

3.4 Quick Leveling, 60% Higher Splicing Efficiency

• Pre-installed positioning buckles — 2 people can complete an 8-panel LCD video wall floor stand assembly and splicing job in 40 minutes.

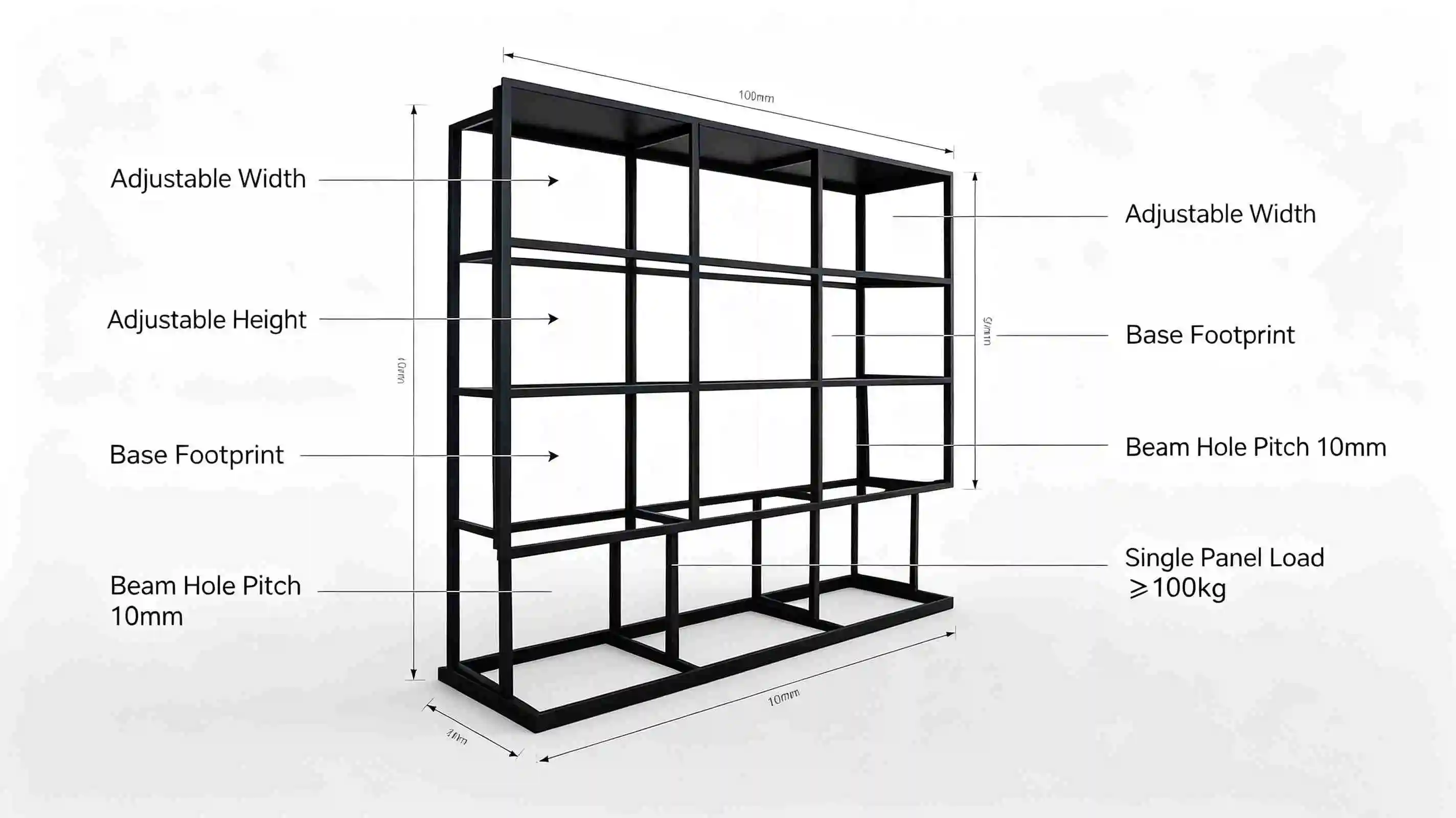

4. Rack Structure & Load-Bearing Design

The LCD video wall rack is built around vertical steel columns connected by horizontal multi-hole beams, reinforced with diagonal bracing at the rear to resist lateral force. Key structural elements include:

• Vertical columns: 2.0mm thickened square steel tube, height-adjustable to match different panel row counts;

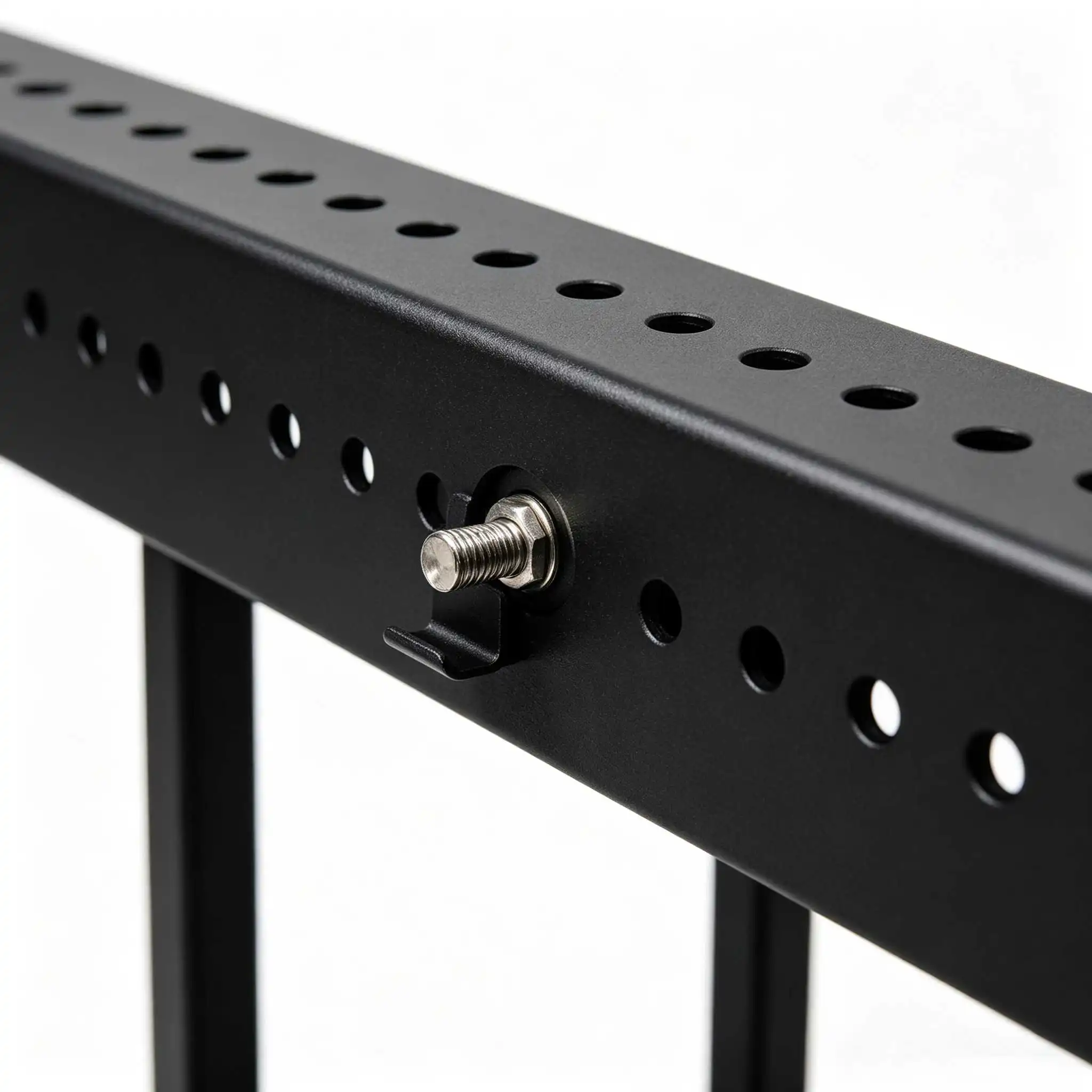

• Horizontal beams: multi-hole punched steel beams at 10mm pitch, allowing panels to be repositioned without re-drilling;
• Diagonal bracing: triangulated support at the rear of the rack, improving overall rigidity and resistance to vibration or accidental impact;

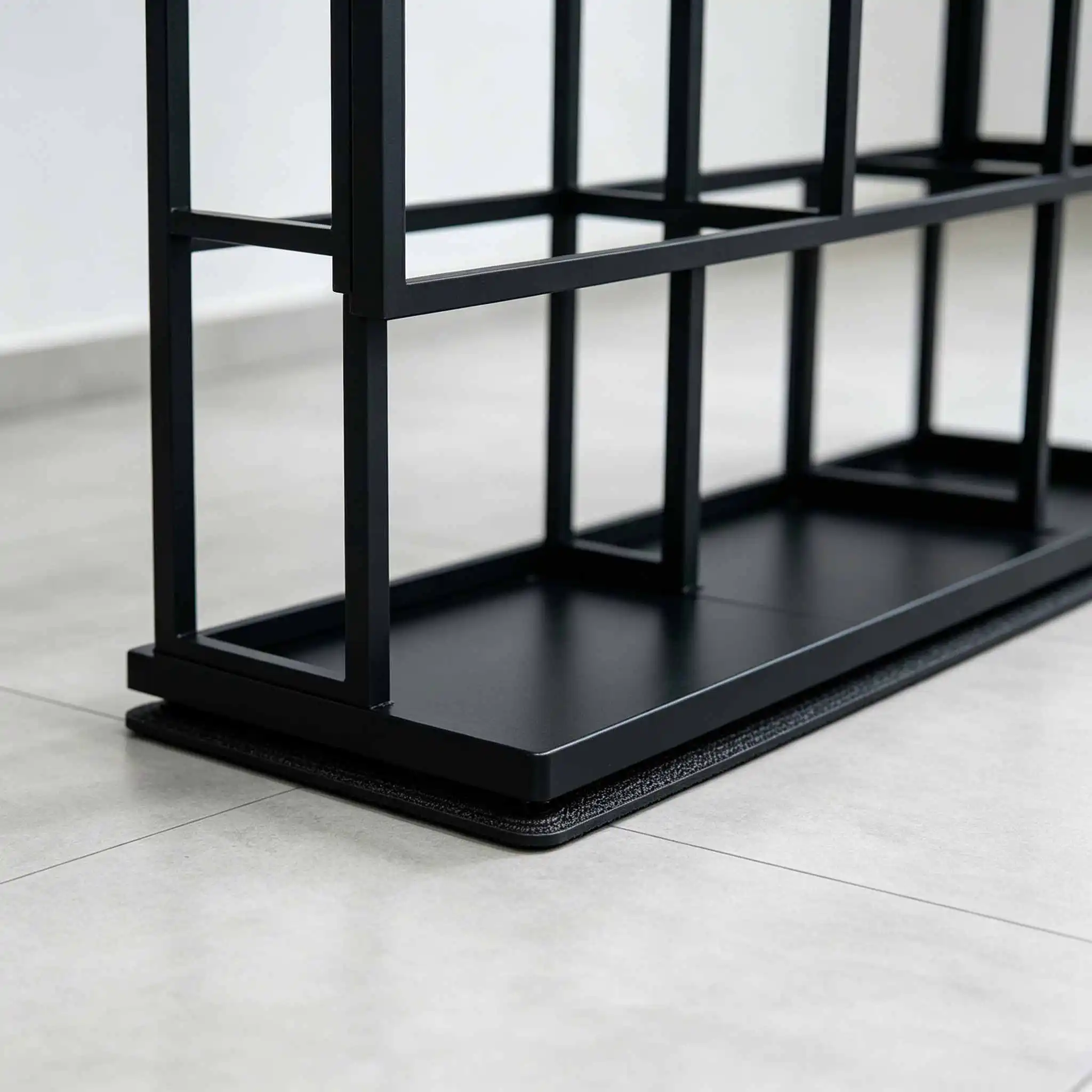

• Base plate & foot pads: wide-stance base plate distributes load evenly across the floor, paired with non-slip, non-marking foot pads.

5. Technical Parameter Table

6. Installation Steps

As a modular LCD video wall installation bracket, the floor stand is designed for fast on-site assembly without professional tools. Typical installation flow:

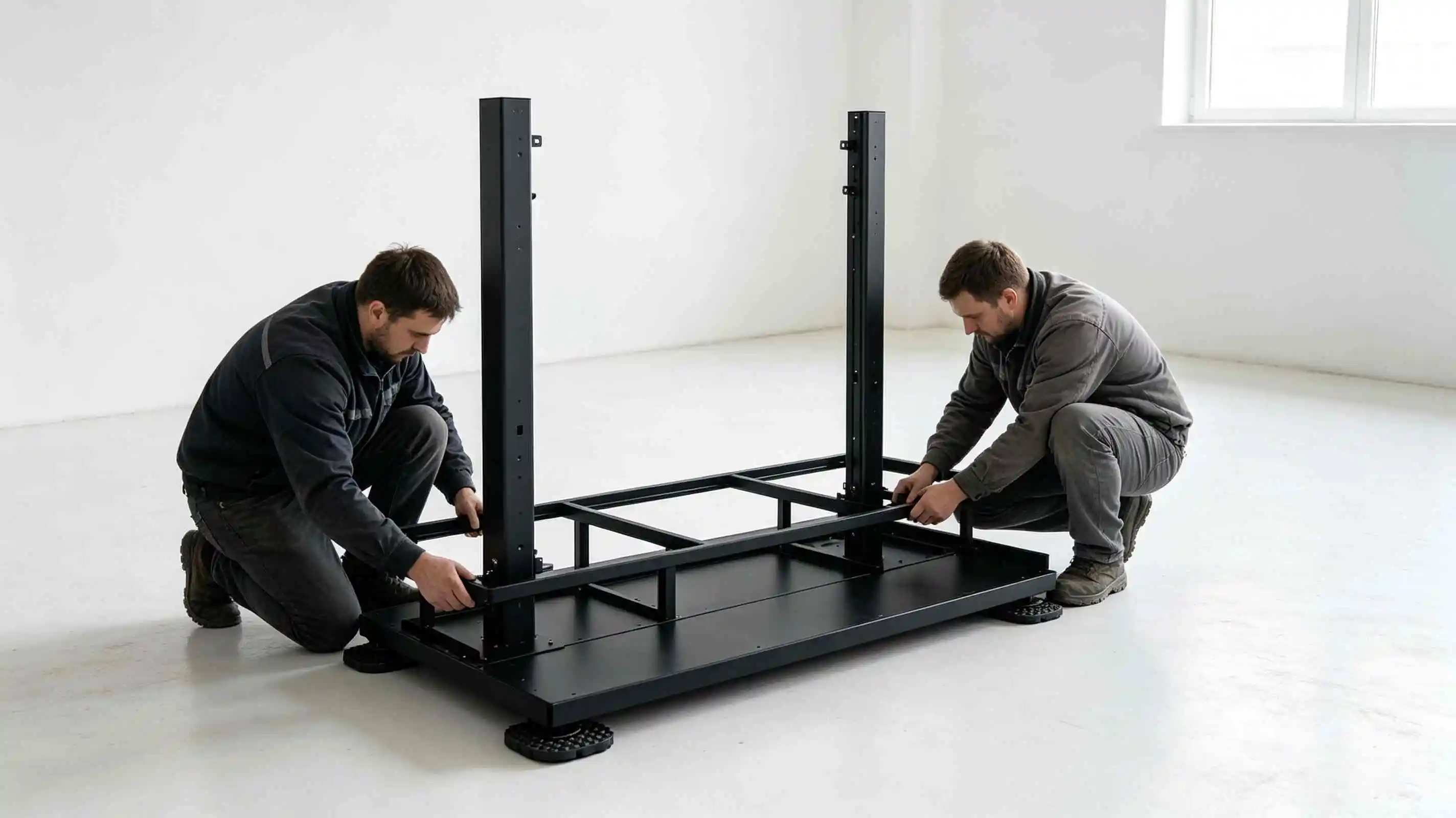

Step 1 — Assemble the Base Frame

Connect vertical columns and base plates on a flat floor, attach non-slip foot pads and check level.

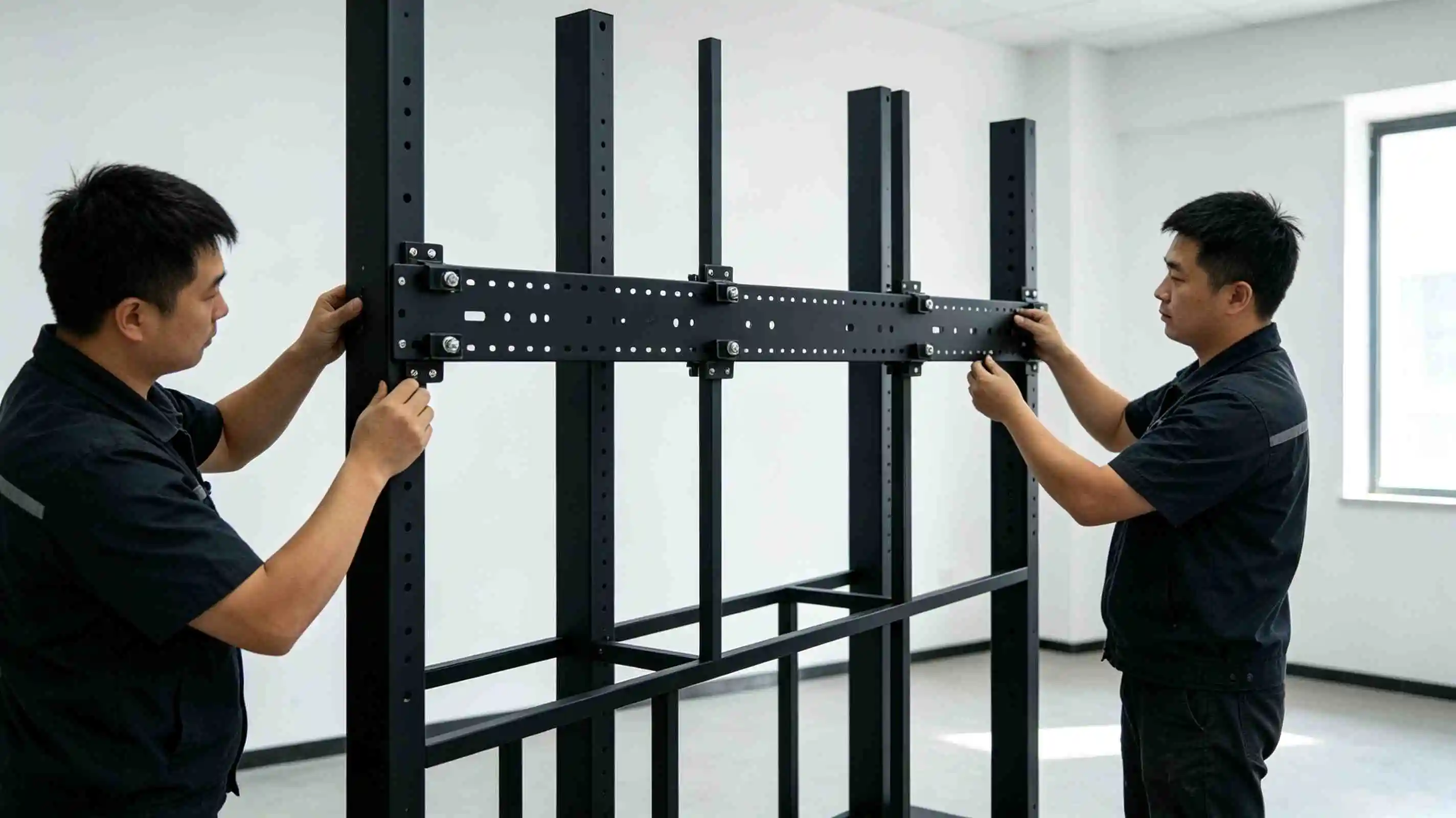

Step 2 — Install Horizontal Beams

Fix the multi-hole horizontal beams to the columns using the pre-installed positioning buckles, matching your target row-column layout.

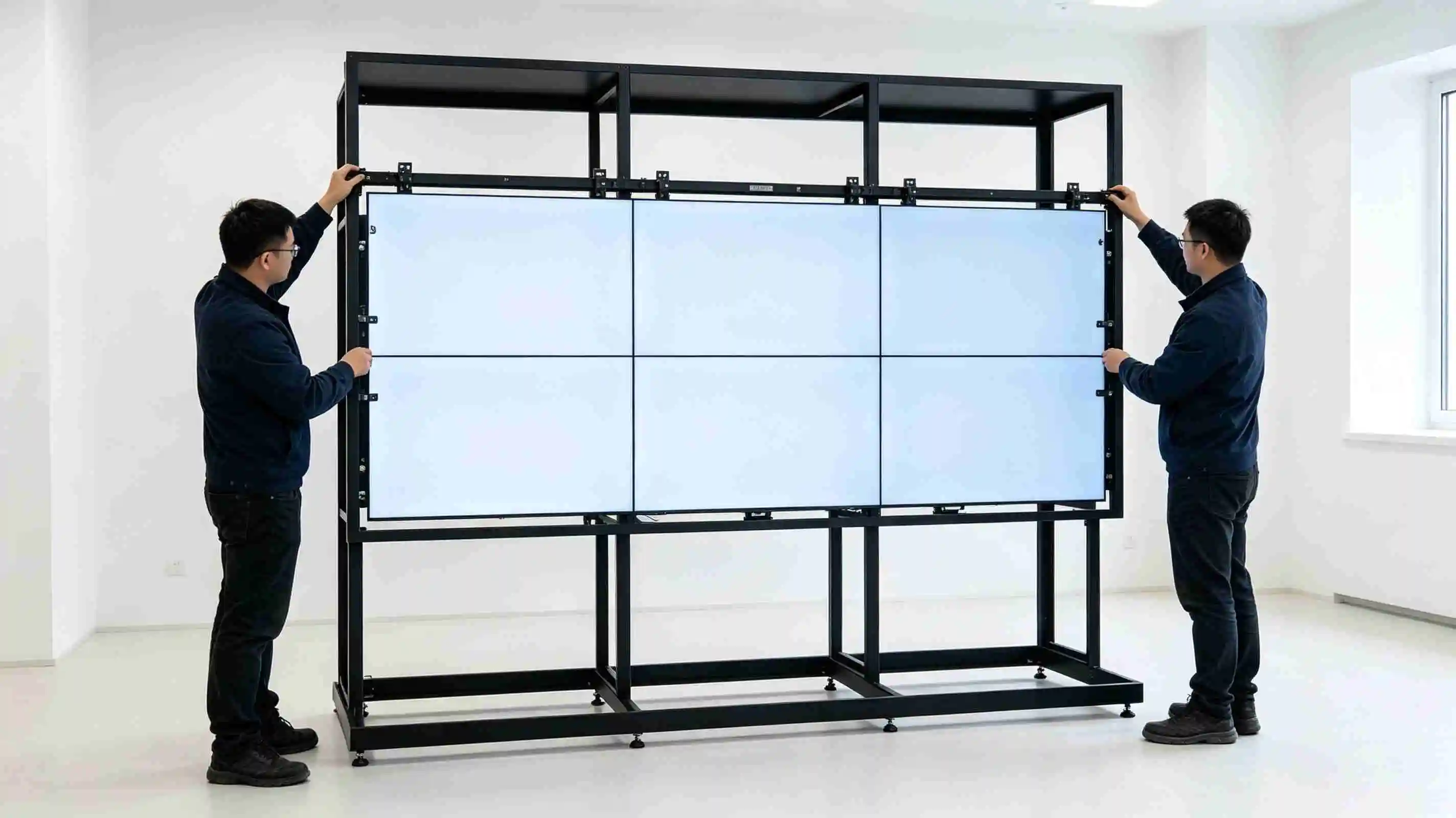

Step 3 — Mount the LCD Panels

Attach each LCD splicing screen panel to the beam grid, working row by row to keep seams aligned.

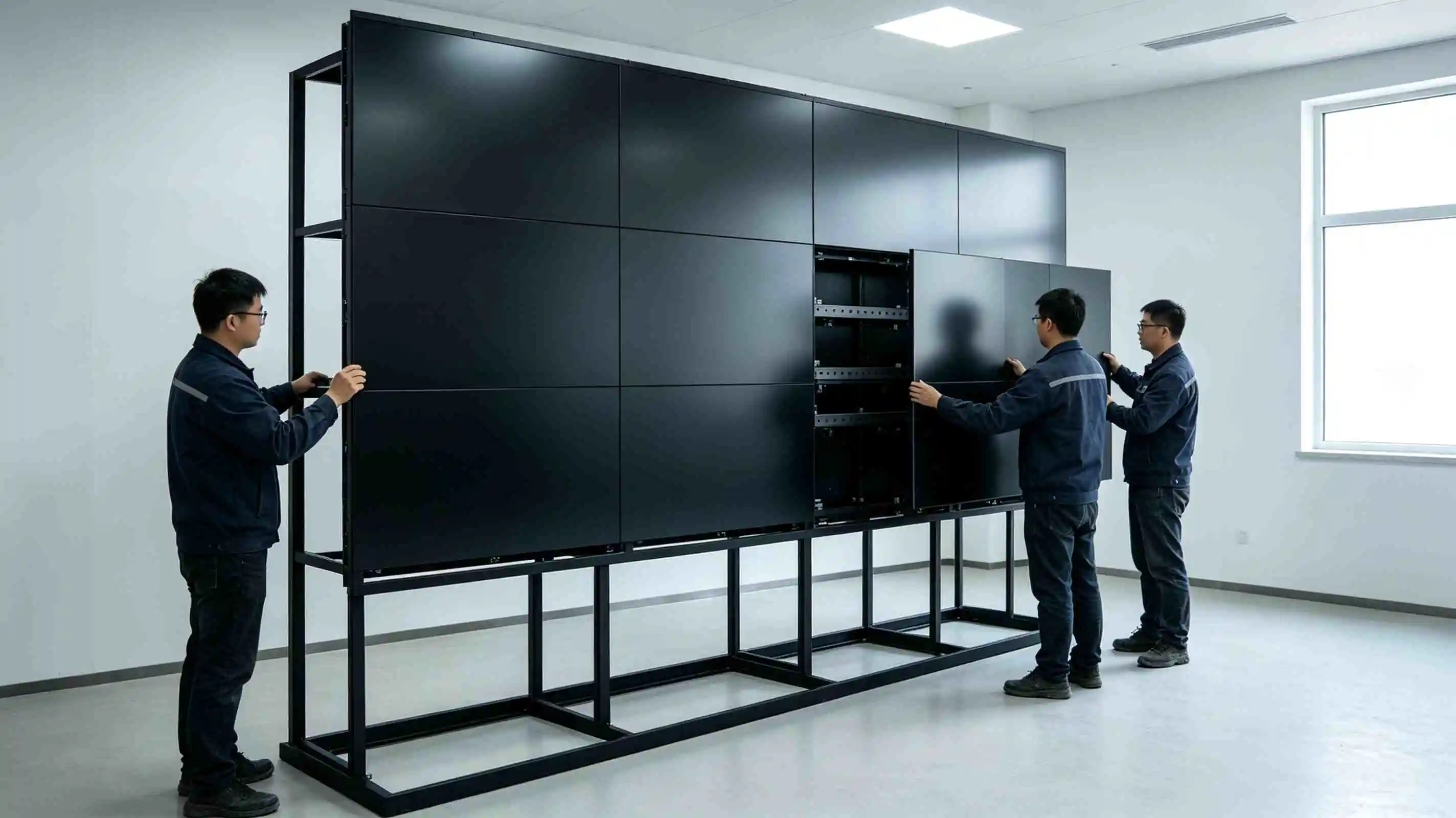

Step 4 — Fine-Tune & Level

Use the leveling structure to fine-tune each panel until seam gaps are ≤0.5mm across the whole LCD video wall.

7. Application Industries & Scenarios

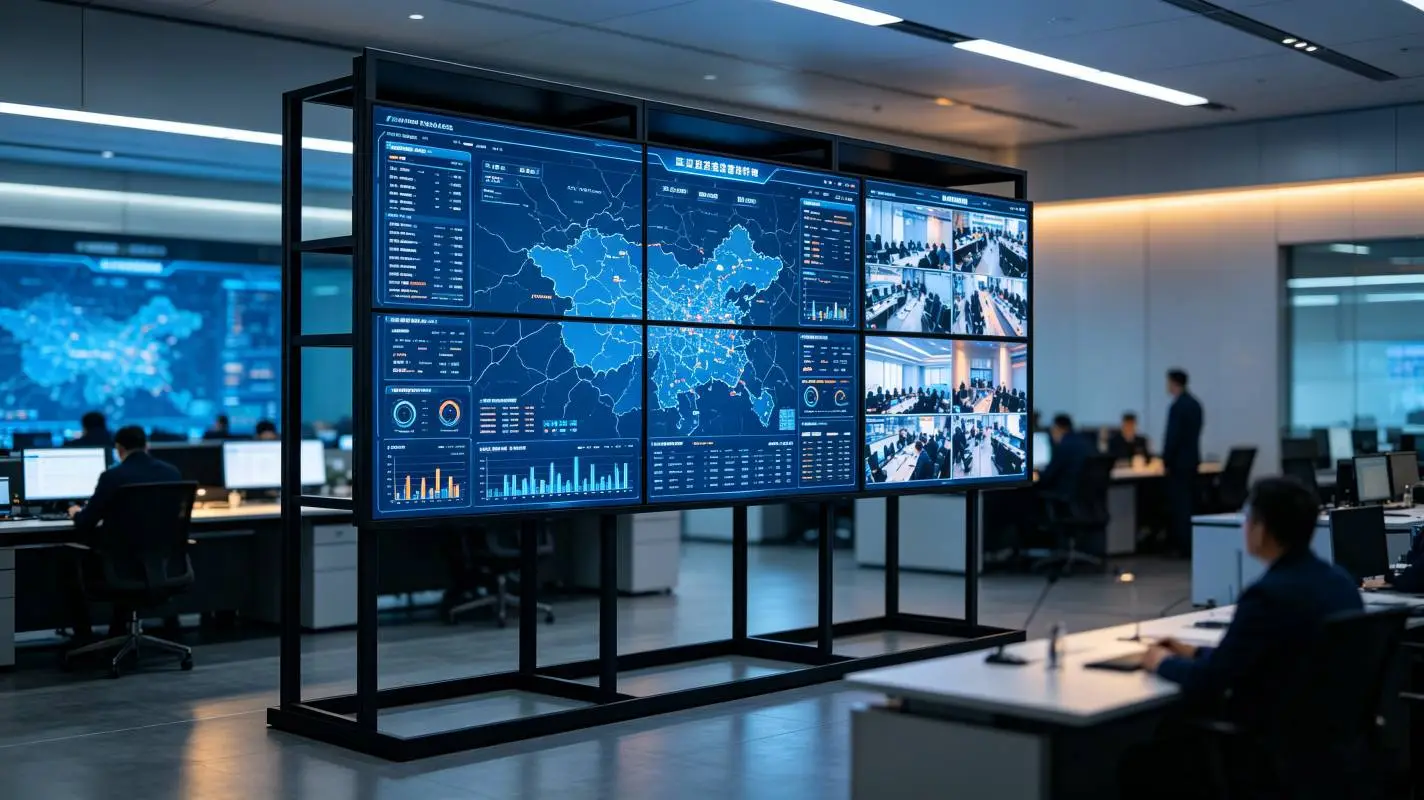

Emergency Command Industry

Applicable to public security/fire command centers, emergency dispatch large screens; Advantage: drill-free floor installation suits temporary command sites; high load-bearing supports ultra-large-scale LCD splicing.

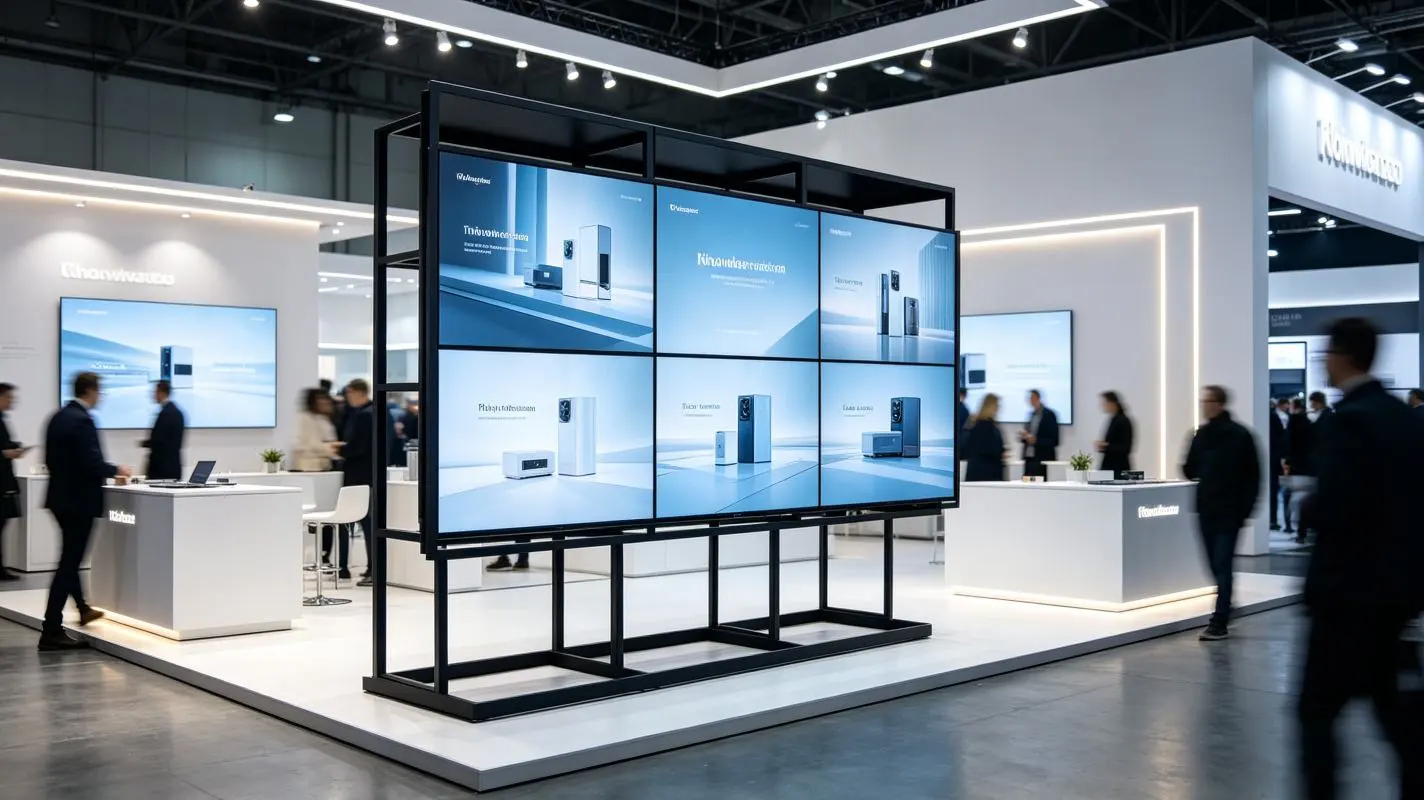

Commercial Exhibition Industry

Applicable to temporary exhibition LCD screens, brand hall digital walls; Advantage: quick disassembly and relocation, no damage to exhibition hall floors/walls; multi-hole design adapts to different screen combinations for various exhibition periods.

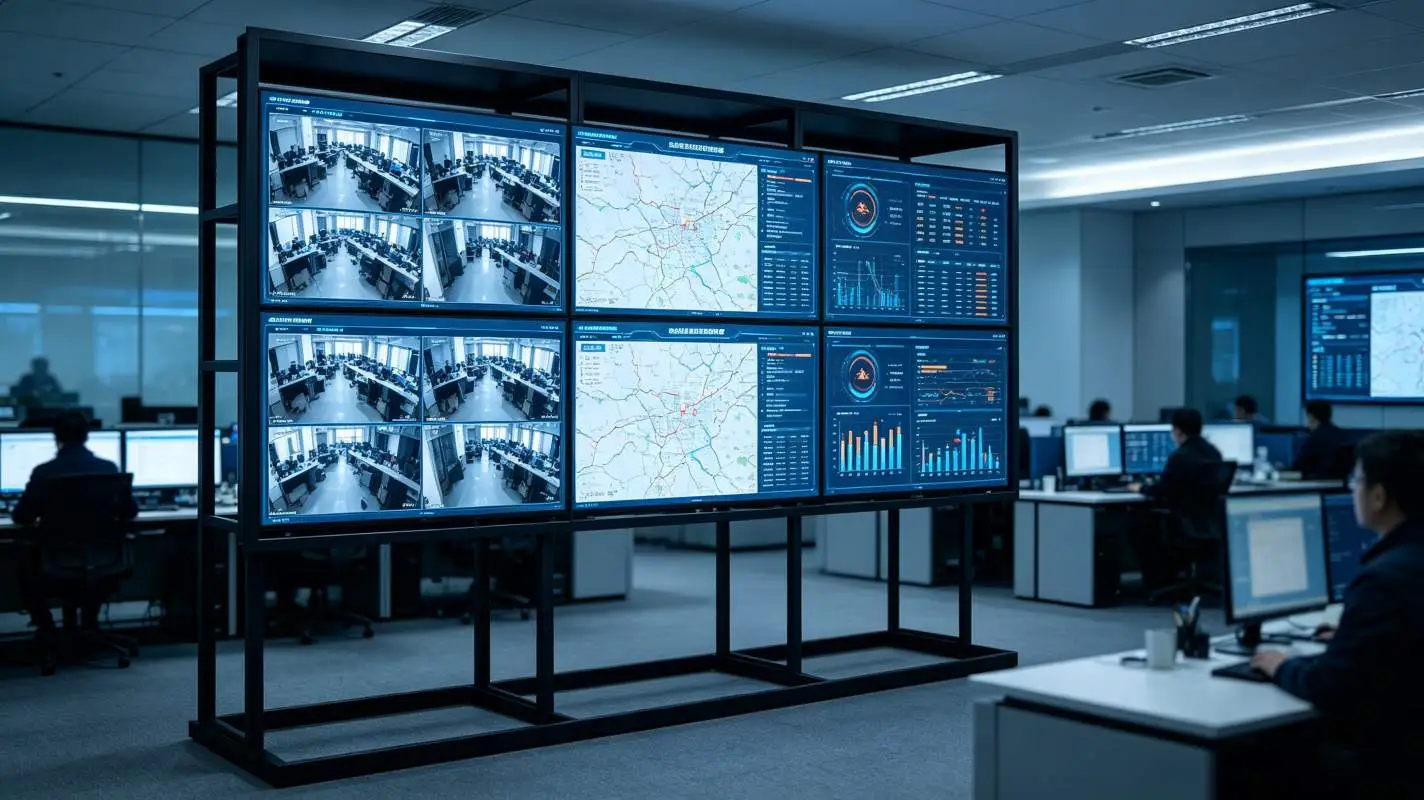

Security Monitoring Industry

Applicable to ultra-large monitoring screens in parks/transport hubs; Advantage: floor structure suits monitoring centers without load-bearing walls; vibration resistance ensures 24/7 stable operation.

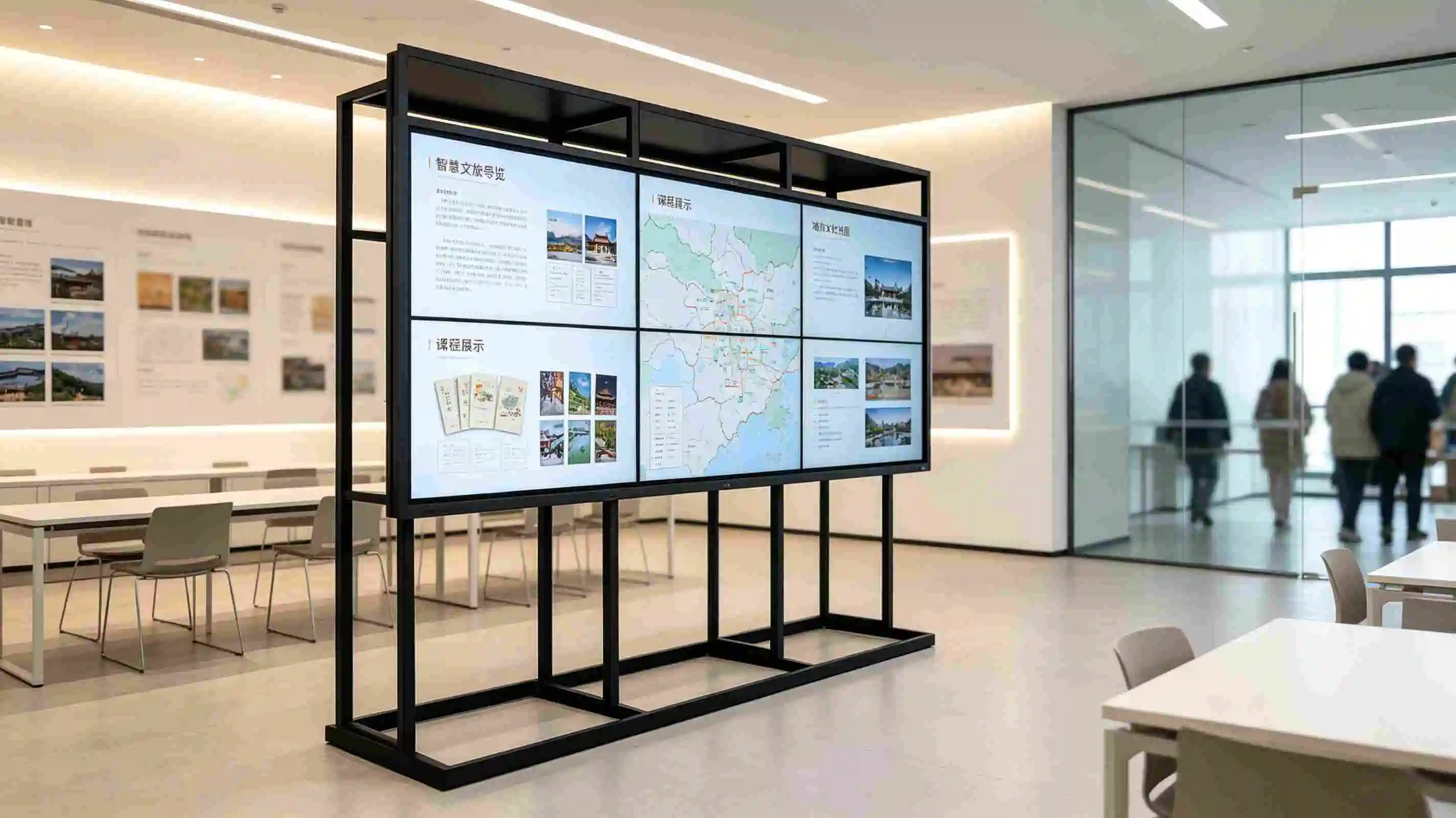

Education & Cultural Tourism Industry

Applicable to campus smart classrooms, immersive large screens in cultural tourism venues; Advantage: drill-free design avoids damaging classroom/venue decoration; multi-panel splicing supports immersive content display.

8. Precautions
