The Qtenboard Interactive Flat Panel is purpose-built for modern corporate environments, including meeting rooms, boardrooms, project collaboration spaces, and diverse remote conferencing scenarios
It's more than just a display; it's an intelligent meeting center integrating wireless screen sharing, AI meeting summaries, AI real-time meeting translation, AI meeting summary mind mapping, video conferencing, interactive electronic whiteboard, document annotation, remote device management, and real-time team collaboration.
From daily briefings and executive presentations to project evaluations and cross-border conferences, Qtenboard enables teams to communicate with clarity, accelerate decision-making, reduce paper usage, and elevate the hybrid-work experience.
Qtenboard interactive panels comply with international quality and safety standards and are certified by CE, FCC, RoHS, and ISO. These certifications reflect our commitment to product reliability, regulatory compliance, and readiness for deployment in global corporate and educational markets.
Backed by two self-owned manufacturing bases in Shenzhen and Guangzhou, Qtenboard delivers true end-to-end production capabilities — covering mainboard R&D, structural engineering, complete assembly, and system-level customization. Its upgraded 330,000㎡ industrial park features 16 production facilities, automated assembly lines, a dedicated aging test center, and a reliability laboratory, ensuring every unit undergoes rigorous quality and performance validation.
With a daily output capacity of up to 200 units, Qtenboard is well-equipped to support long-term supply for major brands, large-scale project tenders, and flexible small-batch customization for regional distributors — all simultaneously. Beyond manufacturing, Qtenboard provides enterprise-level lifecycle support spanning pre-sales consultation, project implementation, and after-sales service. This integrated service model enables global partners to receive timely support, streamline deployment, and build stable, long-term partnerships with confidence.
Fast and accurate real-time speech recognition. Converts spoken content into editable text for easier documentation during lectures, meetings, and presentations.
Automatically extracts key points, decisions, and action items, generating structured meeting minutes that can be exported in PDF or Word format.
Provides instant answers during teaching or meetings, offering definitions, explanations, and related knowledge in real time.
Summarizes content, translates speech or text, and provides insights. Supports multilingual environments and voice control.
Qtenboard delivers a premium visual and writing experience for modern meeting rooms.
It is equipped with a 4K UHD (3840×2160) high-brightness, high-contrast display paired with low-reflection tempered glass, ensuring crisp visuals and comfortable viewing across various lighting conditions.
The writing experience is equally refined. With support for 20/40/50-point multi-touch, ultra-low latency, intelligent palm rejection, and automatic recognition of finger, stylus, and eraser inputs, users can write, draw, and annotate simultaneously with precise, fluid, and natural strokes.
With one-click wireless screen sharing, Qtenboard enables instant casting from Windows, macOS, Android, and iOS devices. Phones, tablets, and laptops connect in seconds, and 4-way split screen supports efficient multi-party collaboration.
For conferencing, it supports optional HD cameras (8MP / 48MP / 4K) and 6/8/12-mic arrays. AI noise reduction, echo cancellation, and powerful speakers ensure clear, immersive communication.
Built-in AI tools add extra intelligence: real-time translation removes language barriers, while AI meeting summaries automatically capture key points and generate visual mind maps, helping teams review and act faster.
Qtenboard comes with a built-in Android system for whiteboarding, screen sharing, browsing, and everyday meeting apps.
For more demanding workflows, you can add an optional OPS Windows PC module (i5 / i7), giving you full access to professional collaboration tools like:
Microsoft Teams
Zoom
Google Meet
Webex
Office documents
This dual-system setup ensures a flexible, smooth experience for any meeting scenario — from brainstorming to formal presentations.
Qtenboard Interactive Flat Panels integrate comprehensive security protections to safeguard both devices and data. Features include USB and HDMI port locks, screen and pattern locks, APK installation control, password protection, scheduled power management, and fingerprint access — ensuring reliable security across various usage environments.
DMS allows remote management of multiple devices by multiple users simultaneously.

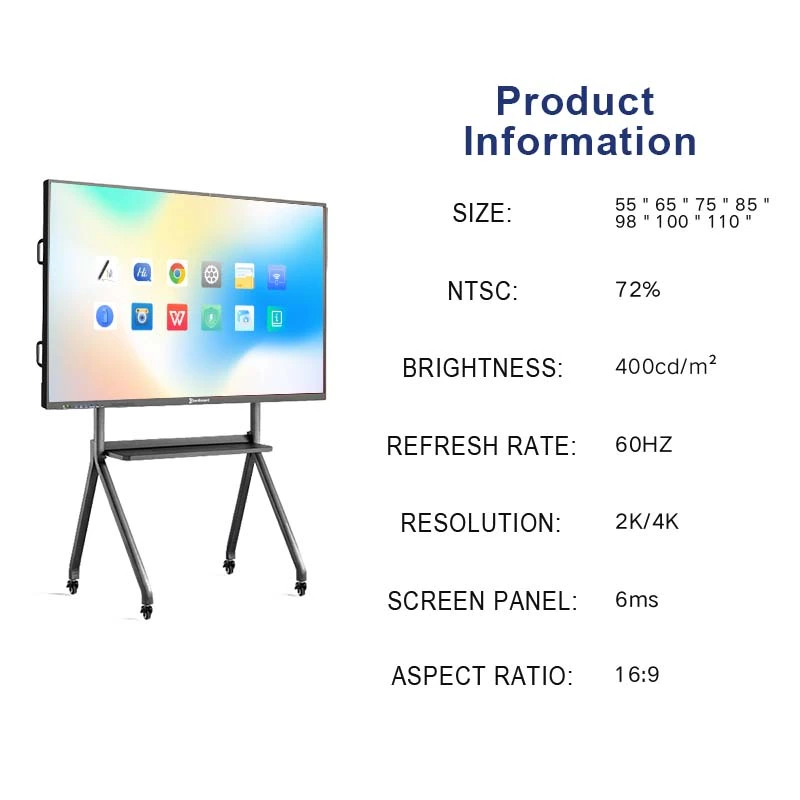

| Brand | |
|---|---|
| Qtenboard | |
| Size | |
| 55'' / 65'' / 75'' / 86'' / 98'' / 105'' / 110'' | |
| Model | |
| QM-55HY / QM-65HY / QM-75HY / QM-86HY / QM-98HY / QM-105HY / QM-110HY | |
| LCD Specifications | |
| Resolution | 3840*2160 4K resolution |
| Brightness | 350cd/m² / 400cd/m² / 450cd/m² |
| Contrast Ratio | 4000:1 (typ.) |
| Color Depth | 16.7M(8bit) |
| Visual Angle | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs (typ.) |
| Android Specifications | |
| CPU | 9679 / 3576 / 311D2 / V100 / 3588 |
| Android OS | Android 14.0 |
| RAM+ROM | 4+32G / 8+128G / 16+256G (Optional) |
| WIFI | 2.4G & 5G |
| Bluetooth | 5.2 |
| Child lock | support |
| Wireless projection | support |
| Touch screen Specs | |
| Touch type | Infrared touch + zero gap bonding |
| Touch point | 20-50 point |
| Touch height | 1mm |
| Camera | |
| Built-in camera and mic | 4800MP+Optional (8 Array Mic) |
| Power | |
| Speaker | 20W*2 |
| Standby power | ≤0.5W |
| Power supply | AC100V-240V,50-60 Hz |
| Working environment | |
| Working temperature | 0℃ ~40℃ |
| Working humidity | 20% ～85%（ no condensation） |
| Storage temperature | -10℃ ~ 60℃ |
| Storage humidity | 10% ～60%（ no condensation） |
| Input/output interface | |
| Type-B 2.0, Type-C, HDMI in, HDMI out, USB, USB-B, DP, VGA, TF Card, MIC, RJ45 in, RJ45 out, RS232 in (optional) | |
Qtenboard is highly flexible when it comes to customization, especially for global brands, distributors, or education departments:
You can fully customize appearance: UI interface, brand logo, packaging, language system, wallpaper, startup animation, preloaded apps, etc.
They support white-label (no brand showing), full OEM, structural ODM, and CKD/SKD disassembly export modes — which helps local partners assemble machines locally, reduce import tax, and improve project competitiveness.
On the software side, because Qtenboard has a strong R&D team, they offer secondary development: you can build local education software, privacy protection solutions, system permission management — basically, make the panel perfectly suit your government / school project requirements.
centralized device control、linking multiple classrooms、smart classrooms
Qtenboard interactive panels have been widely deployed in enterprise and meeting projects across Southeast Asia, North America, South America, and South Africa. Through close collaboration with local system integrators and business partners, Qtenboard delivers end-to-end support covering solution design, product supply, installation, and project deployment.
Customers consistently recognize Qtenboard for product stability, long-term reliability, responsive after-sales service, and efficient customization capabilities — helping the brand build a strong reputation in the global corporate and conferencing market.
The Qtenboard industrial park covers 330,000 m², with 16 dedicated buildings. It has:
1.Modern SMT production lines
2.Fully automated assembly lines
3.Dust-free bonding workshops
4.A professional aging (stress test) laboratory
They test every panel for structural strength, touch accuracy, speaker acoustics, and reliability via aging tests — to make sure that even in mass production, each device meets international-quality standards.
Owning their own factory means they have full control over lead times, quality, and cost, giving partners a real edge — especially for big projects or long-term contracts.
For global B2B customers, Qtenboard offers a comprehensive technical support system:
1.Remote system upgrades
2.Technical documentation
3.Installation guidance
4.On-site/remote training
5.Local assistance when needed
Our engineer team can provide project consultation before deployment, remote monitoring and support during rollout, and ongoing maintenance, replacement, and firmware upgrade services.
With DMS and remote systems, Qtenboard helps partners rapidly locate issues, reduce after-sales costs, and improve operational efficiency across channels.
Q1: Can it be compatible with Zoom / Teams / Google Meet?
Absolutely, it runs smoothly on both Android and Windows.
Q2: Can it display content from multiple devices simultaneously?
It supports up to four split screens; more can be customized.
Q3: Can the meeting content be saved?
Yes, you can save notes and annotations with one click, and share them via email or local USB drive.
Q4: Does it support enterprise-level security management?
Yes, it includes password locking, permission management, system lock, remote control, etc.
