Qtenboard designs and manufactures advertising LCD video wall systems for retail, transportation, and public-space digital signage, backed by more than 20 years in the commercial display industry.
Production runs across facilities in China, Thailand, and Vietnam give Qtenboard steady output volume, consistent lead times, and tight quality control on every advertising video wall shipped to Southeast Asian markets — including Thailand, Vietnam, Indonesia, Malaysia, the Philippines, and Singapore.
Each advertising LCD video wall order ships as a complete package — display panels, mounting/splicing frames, media players, control processors, and installation hardware — so brand owners and system integrators across the region get one supplier instead of coordinating several.
Qtenboard's video wall installations already run behind global names such as Adidas, Anta, Chanel, and DJI, and are actively deployed in shopping malls, transit stations, and flagship retail spaces throughout Southeast Asia.
Engineered for 24/7 commercial operation with stable brightness output and consistent color accuracy, so promotional content looks the same in month one and month twelve.

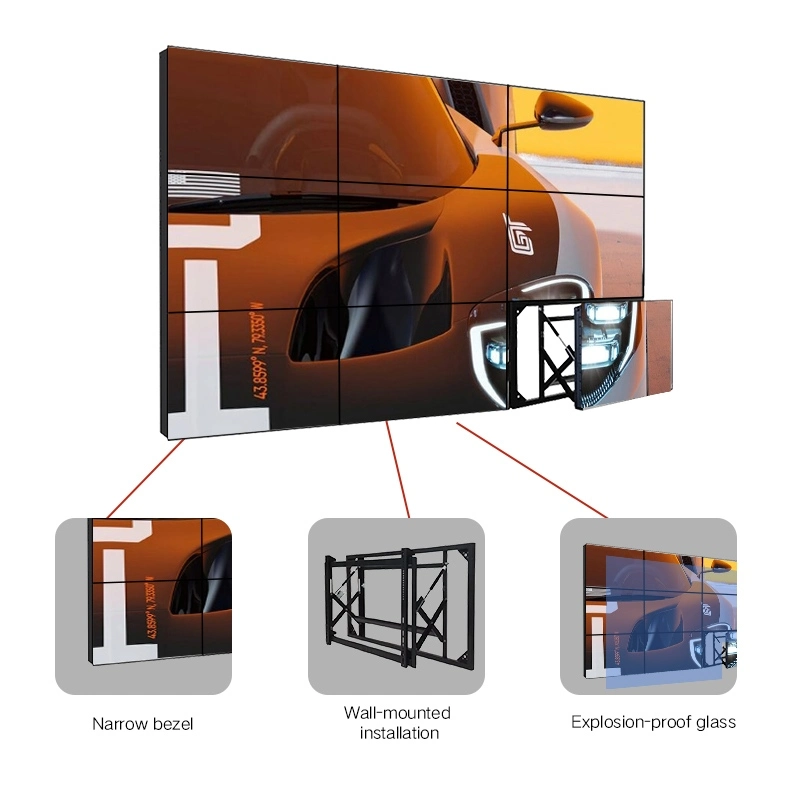

A choice of ultra-narrow bezel widths lets multiple panels line up into one continuous advertising canvas, without visible breaks interrupting brand visuals.
Switch between full-screen campaigns, split-screen promotions, scrolling captions, or freely combined zones — matched to whatever a retail or transit advertising slot calls for.
Push content, adjust brightness, set playback schedules, and check device health remotely — useful for advertisers running the same campaign across multiple sites in different Southeast Asian cities.
Metro & Transit Advertising
Cinema Lobby & Entertainment Venues
Flagship Retail Storefronts
The parameters below reflect the 3.5mm bezel gap, 65-inch panel, model QM-6502 configuration. For other bezel gaps or panel sizes suited to your advertising site, contact our sales team.
| Brand | Qtenboard |
| Model | QM-4603/QM-4905G/QM-5502-LED/QM-6502 |
| Screen Size | 46 / 49 / 55 / 65 inch (additional sizes and models available on request) |
| Splicing Gap | 8mm / 3.5mm / 1.8mm / 1.7mm / 0.88mm / 0mm |
| Backlight | LED |
| Aspect Ratio | 16:09 |
| Max Resolution | 1920×1080 / 2K or 3840×2160 / 4K |
| Contrast Ratio | 4500:1 |
| Brightness | 500cd/㎡ |
| Active Area | 65 inch:1428.68(H)× 803.72mm(V) |
| Color Saturation | 97% |
| Response Time | 6ms |
| Viewing Angle | 178° |
| Service Life | about 60,000 hours |
| Panel Color | Black / Custom color |
| Signal Format | PAL/NTSC adapting 480I, 576I, 720I, 720P, 1080I, 1080P |
| Interface | Input: Power, DVI, HDMI, USB |
| Control Port | Input: serial port(RS232), Output: serial port(RS232)×2 |
| Panel Control | Remote control |
| Display Function Overview | Multi-signal split screen display, whole screen display, any combination of display, subtitles display |
| Power Consumption | Operating ≤350W; Standby ≤3W |
| Language | English/Chinese; Multilingual optional |
| Installation | Cabinet type, wall hanging, ceiling optional |
| Structure | Strong solid metal casing, anti-static, anti magnetic field, anti strong interference |
| Operating Temp/Humidity | 0℃～50℃ / 20%～80% (non-condensing) — suited to Southeast Asia's hot, humid climate |
| Storage Temp/Humidity | -10℃～60℃ / 5%～95% (non-condensing) |
| Accessories | Manual, Power cable, Certification, Warranty card |
| Unit Dimension(mm) | 1432.58(L)×803.62(H)×69(D) |
| Unit Weight | about 35kg (excluding accessories) |
| Optional Features | Third-party control (mobile, iPad, remote info software), PIP/PBP/roaming/overlay, DP/VGA/BNC port optional |
Standard sizes are 46", 49", 55", and 65", with custom sizes available for advertising sites in Thailand, Vietnam, Indonesia, and other Southeast Asian markets upon request.
Yes. Panels combine freely into configurations such as 2×2, 3×3, or larger custom layouts to fit mall atriums, transit corridors, or storefront walls.
Yes. Every panel is commercial-grade and built to run 24/7, which is standard for advertising placements in shopping centers and transit stations.
Yes. Split-screen, full-screen, scrolling captions, and freely combined zone layouts are all supported for running several advertising formats at once.
Control is available through remote handset, RS232, or third-party centralized management software — suited to advertisers managing screens across several Southeast Asian sites at once.
Qtenboard provides warranty coverage, full technical documentation, and dedicated after-sales support for advertising video wall deployments across the region.
